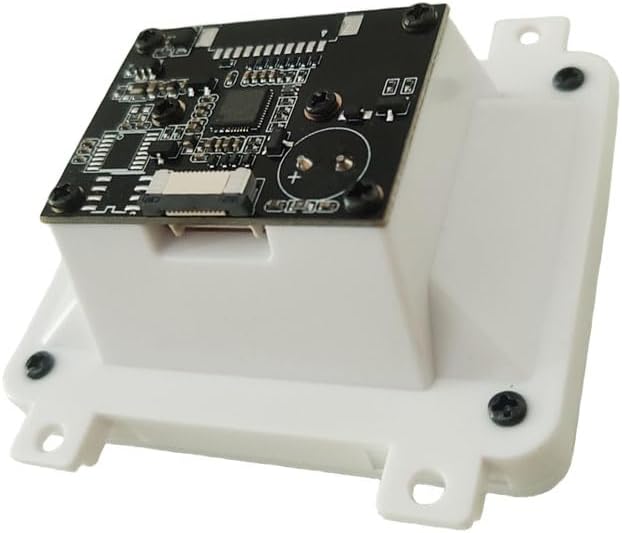

Barcode Scanner Module 1D/2D Codes Barcode, QR Code Reader Scanning Onboard USB Directly Plugged into Computer or Self-Service Equipment Can Work in Dark

Applications Fields: Smart Access Control, Locker, Scan Code Gun, Channel Gate, Station Inspection Ticket, Smart Self-Service Terminal, Supermarket, Retail Store, POS System, Cash Registers,Warehouse Management, Conference Ticketing, etc Need to Scan 2D Codes Industry Equipment. Technical Parameters: Voltage:5V. Power:<0.9w. Communication interface:UART TTL\UART RS232\USB Scanning Mode: Omni-directional Auto Sense Scan Mode. Parameter setting method: sweep QR code setting parameter or host command setting. Work tips: Buzzer can be connected, LED indicator. Scan angle: ±60°, ±40°, ±360° (left right, front back, rotation). Decoding type: 1D/2D:Code128,UCC/EAN-128,AIM-128,EAN-8,EAN-13, ISBN/ISSN,UPC-E,UPC-A,Interleaved 2 of 5,ITF-6,ITF-14,ITF-25,Industrial 25,Standard 25,Code 39,Codabar,Code 93,Code 11,QR Code. Scan Distance:5 mil: 5 to 10cm (adjustable by customer needs). Working temperature: -25°C~55°C. Humidity: 5%~95% (Non-condensing). Dimension: 66mm x 65mm x 26.5mm.PACKAGE CONTENT: Barcode Scanner Module x1 USB cable x1If you need to know the product details, you can contact us via Amazon to send us an email.We will send you the product development materials and setup manual. The product is developed and produced by our company. The company has professional technicians to provide after-sales technical support. Please feel free to buy, thank you for your patience.

• The barcode 1D/2D code reader can be embedded in any equipment to scan barcodes or two-dimensional codes, which makes the upper computer equipment intelligent. By using intelligent image recognition algorithm, it supports fast reading of paper or screen barcodes and QR codes.
• Embedded two-dimensional code scanner can be used for access control, access, lockers, code scanning payment and so on. And has stable performance and very fast decoding speed.
• The default settings of the scanner can meet the needs of most customers. At the same time, the scanner is also equipped with a setting manual, and customers can also make personalized configurations by scanning the "configuration code", such as setting the fill light, baud rate, sensitivity and so on.
• The barcode/QR code scanning module adopts CMOS optical imaging scanning technology, which can identify screen codes, incomplete codes and fuzzy codes. It can quickly and accurately decode the barcode or QR code on paper or screen. It can easily capture 1D barcode /2D QR code on label, paper, mobile phone or computer display screen, which is sensitive and accurate.
• The QR code scanner provides 3D /CAD drawings, which makes it easier for you to embed the scanner on the panel of your device. In addition, the scanner also supports switching between TTL and USB. Let you choose to use the interface more calmly.
